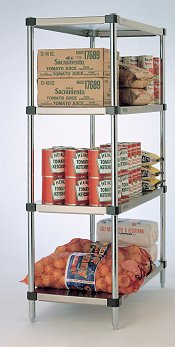

HD Super Solid Stainless Shelving with black powder-coated-corners.
Get Quote - psorders@problemsolver.us | Heavy Duty system features 16-guage solid shelves.
Large 1 5/8 (41mm) diameter posts and 2" (51mm) shelf adjustability.
Shelf options include flat or louvered/embossed styles, and galvanized or stainless steel finishes. Stainless solid shelving has black powder-coated corners. Galvanized solid shelving has uncoated cast corners.
HD Super shelves, posts, and casters are not compatible with Super Erecta or Super Adjustable Super Erecta components. |
|
HD Super Flat Shelves |
|
|
|
|
Width / Length | Galvanized |
Stainless |
Qty | (in.) | (mm) |
18 x 36 | 457 x 914 | 1836HFG | 1836HFS | | 18 x 42 | 457 x 1066 | 1842HFG | 1842HFS | | 18 x 48 | 457 x 1219 | 1848HFG | 1848HFS | | 18 x 54 | 457 x 1370 | 1854HFG | 1854HFS | | 18 x 60 | 457 x 1524 | 1860HFG | 1860HFS | | 24 x 36 | 610 x 914 | 2436HFG | 2436HFS | | 24 x 42 | 610 x 1066 | 2442HFG | 2442HFS | | 24 x 48 | 610 x 1219 | 2448HFG | 2448HFS | | 24 x 54 | 610 x 1370 | 2454HFG | 2454HFS | | 24 x 60 | 610 x 1524 | 2460HFG | 2460HFS | |
|
| |
HD Super Louvered / Embossed Shelves |
Width / Length | Stainless | (in.) | (mm) | 18 x 36 | 457 x 914 | 1836HLS | 18 x 42 | 457 x 1066 | 1842HLS | 18 x 48 | 457 x 1219 | 1848HLS | 18 x 54 | 457 x 1370 | 1854HLS | 18 x 60 | 457 x 1524 | 1860HLS | 24 x 36 | 610 x 914 | 2436HLS | 24 x 42 | 610 x 1066 | 2442HLS | 24 x 48 | 610 x 1219 | 2448HLS | 24 x 54 | 610 x 1370 | 2454HLS | 24 x 60 | 610 x 1524 | 2460HLS |
|
HD Super Stationary Posts |
| Width / Length(in.) | Chrome | Stainless | 56 | 54HPC | 54HPS | 64 | 63HPC | 63HPS | 76 | 74HPC | 74HPS |
|
|
| HD Super Stem Posts |
| Height (in.) | Chrome | Price Each | Stainless | 54-9/16 | 54UHPC | $49.00 | 54UHPS | 62-9/16 | 63UHPC | 52.15 | 63UHPS | 74-5/8 | 74UHPC | 54.95 | 74UHPS |
|
|
HD Super Stem Caster
Includes donut bumpers with each caster. |
| Wheel Dia | Face Dia | Type | Wheel Tread | Cat. No. | (in.) | (lbs.) | (kg) | 5 | 1-1/2 | 38.1 | Swivel | Polyurethane | 5HHP | 5 | 1-1/2 | 38.1 | Brake | Polyurethane | 5HHPB |
|
|
| |

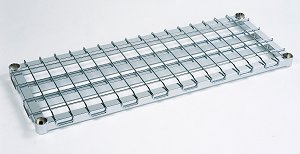

| HD Super Dunnage Shelves | A super heavyweight among heavyweights.
48" (1219mm) rack has a 3,000 pound (1361kg) static load capacity (uniformly distributed); 60" (1524mm) rack carries up to 2,400 pounds (1089kg). For use on H. D. 1 5/8" (41mm) posts only.
Removable wire deck (5/16" [7.9mm] diameter wire) lifts off for easy cleaning.
Support frames: 1 1/2" (38mm) square tubing. |
|
Wth / Lgth | Cat. No. Chrome | Cat. No. Metroseal 3 | Cat. No. Stainless | (in.) | (mm) | 18 x 48 | 457 x 1219 | 1848HDRC | 1848HDRK3 | 1848HDRS | 18 x 60 | 457 x 1524 | 1860HDRC | 1860HDRK3 | 1860HDRS | 24 x 48 | 610 x 1219 | 2448HDRC | 2448HDRK3 | 2448HDRS | 24 x 60 | 610 x 1524 | 2460HDRC | 2460HDRK3 | 2460HDRS |
|
Important: In stationary shelving, stability decrease as the ratio of height to width increases and when heavier loads are placed on upper shelves. Keep units as wide and low as possible, using the dunnage shelf as the bottom shelf. If two dunnage shelves are being used, both should be placed within the lower half of the unit.
Note: Not compatible with Super Erecta or Super Adjustable Super Erecta components. |
HD Super Cantilever Shelf |
| Width / Length | Fits Unit | Cat. No. Chrome | Cat. No. Stainless | (in.) | 12 x 54 | 60" long | 1254CHC | 1254CHS | 12 x 60 | 72" & 96" long | 1260CHC | 1260CHS |
|
| | HD Super Replacement Parts |
|
|
| Replacement HD Super
Aluminum Split Sleeve
4 pair per bag
9986HZ | Replacement HD Super
Plastic Split Sleeve
4 pair per bag
9985H | Post Clamps
9994HZ$10.70 |
|
|
| Replacement 5 1/2" (140mm) Donut Bumpers
Above fit 1 5/8" (41mm) posts only.
9992H | 3 1/2" (89mm) Foot Plates
9993HS | Wall Mounting Brackets
9984HZ h |
|
|
|
Metro Heavyweight Super Solid Shelving
