Metro's Open Starsys™ System is a productivity focused, high and comfortable access to the material it stores.  The optional full-extension shelf offers increased storage capacity compared to standard shelving and carts.  Design unit to fit your needs following the simple steps as provided below.

ESD Classification:  Conductive (Stationary and Mobile ESD units only).

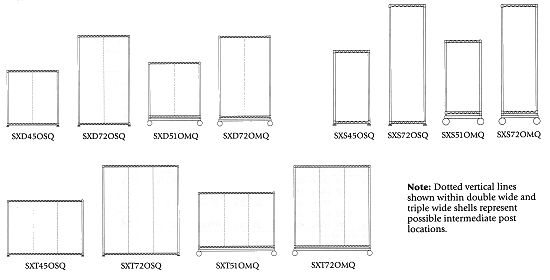

I.  Select a Shell

Shells are available in single, double, or triple wide dimensions to accommodate interior shelves, either stationary or full extension.  Select your desired shell from the 12 available models below.  Each shell comes complete with top and bottom wire shelves, posts with slotted inserts, footplates (for stationary models) or extended base with 5" (127mm) swivel and brake casters (for stationary models) or extended base with 5" (127mm) swivel and brake casters (for mobile models), and necessary hardware.  Triple-wide units also include one pair of intermediate posts to create a single wide and double wide bay to accommodate available shelves

**Mobile ESD Units include aluminum shroud and grounding cable.  All standard stationary units are ESD safe.
All units shown above are shipped knocked-down.

II. Select Desired Configuration

Double and triple wide units (SXRD and SXRT models) may be internally divided into vertical bays to accommodate single or double wide shelves as desired.  Two intermediate posts are required between each bay and come with appropriate mounting hardware.  Select required intermediate posts as specified below:

A-One intermediate post required to enclose back of double wide unit if only double wide shelves are being used (2 back panels required).
B- Two intermediate posts required to divide double wide unit into 2 vertical bays that accommodate single wide shelves.
C-Two intermediate posts required as standard components with all triple wide units to segment into 1-single wide and 1- double wide vertical bay that accommodates single and double wide shelves as desired.
D- One additional intermediate post is required to enclose back of triple wide unit with back panels (3 back panels required).
E- Two additional intermediate posts required on triple wide units to segment into 3-single wide vertical bays that accommodate single wide shelves as desired 3 back panels required if rear enclosure desired).

Intermediate Posts

III. Select Desired Shelves and Accessories (if required)

Shelves are available in stationary or full extension styles that can be installed at any location on a post within a shell at 1" (25.4mm) increments.  Stationary shelves include necessary mounting clips and each full extension shelf includes one pair of shelf glides with a right-hand lock button to prevent shelf movement while mobile.  Stationary and full extension shelves can be utilized together in the same shell.*

Shelving

Weight capacities shown are based on uniformly distributed loads.
*Full extension shelves can be positioned within a unit up to, and including, a maximum height of 48" (1219mm) above the floor.  Only one shelf of the equipment opened at any one time; excluding transport, where all shelves should be closed and the locking mechanism engaged.

Accessories

*Note Ledge can be used as both a back and a side ledge.  For use as a  back ledge, order same number of ledges as width of shelf (e.g., single wide = 2).  Ledge not functional as side ledge on full extension shelves.
**Note:  Ledge and divider accessories may be used with ESD Units.
